Add record functionality for recording + replaying plots as objects

[grantmcdermott]

Fixes #121

Updated description

The PR adds a new top-level tinyplot(..., record = <logical>) argument, which in turn enables (modified) grDevices::recordPlot functionality for recording and replaying tinyplots as objects. User can also enable globally via the sister tpar(record = TRUE) option.

Apart from switching to an explicit opt-in, the main changes from the first iteration of this PR are related to safer handling of replayed (in turn, via better integration with tinyplot internals). This includes automatic displaylist landing for external devices, as well as smart theme and call restoration. Some of this is enabled by the new recordedtinyplot object class, which is really just a thin+tinyplot-friendly wrapper around recordedplot.

P.S. I'm currently marking this feature as "Experimental. But I've test it pretty thoroughly locally and everything seems to be working well. There's minimal overhead and the explicit opt-in requirement also gives us an off-ramp in case we notice any (unfixable) unintended consequences down the road.

MWEs

Basic use via top-level record argument:

pkgload::load_all("~/Documents/Projects/tinyplot/")
#> ℹ Loading tinyplot

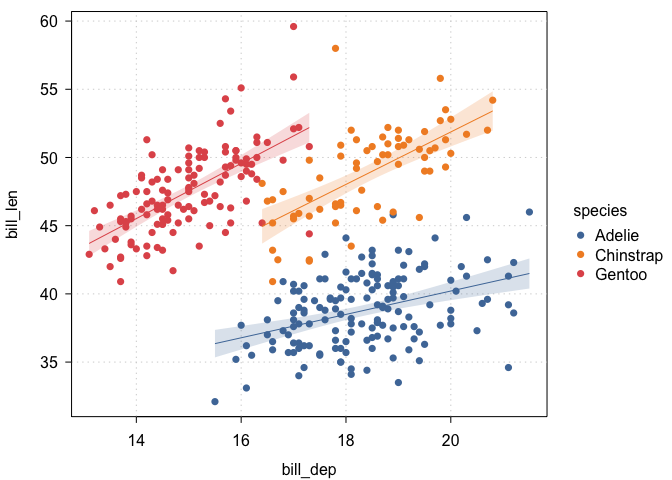

p = plt(
  bill_len ~ bill_dep | species, data = penguins, theme = "clean",
  record = TRUE  # <-- key arg
)

We can then carry on with our session, including constructing other plots, before replaying our saved object (and add layers to it, if desired).

# <other jobs, plots, etc.>

p                     # replay our saved plot
plt_add(type = "lm")  # adding to it works as expected

record is requires explicit op-in, but users can also set globally via tpar. One cool feature is that you can record a plot written to an external device (PDF, PNG, etc.) and then recall it later to your interactive viewer.

tpar(record = TRUE). # enable recording by default

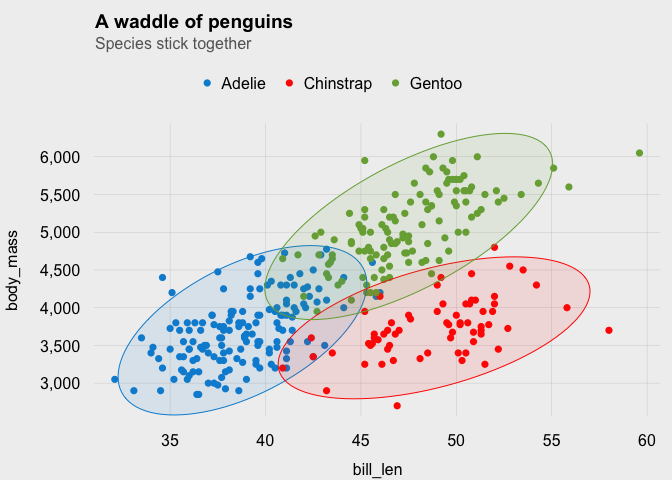

p2 = plt(
  body_mass ~ bill_len | species, penguins,
  yaxl = ',',
  main = 'A waddle of penguins',
  sub = 'Species stick together',
  theme = 'web',
  legend = list('top!', title = FALSE),
  file = "penguins.pdf"
)
unlink("penguins.pdf")
p2
plt_add(type = "ellipse", fill = 0.1)

Aside: with global recording turned on (tpar(record = TRUE)), all of the regular object-based idioms and workflows apply. For example, you can draw a plot without explicit assignment and then retrieve it immediately after with .Last.value.

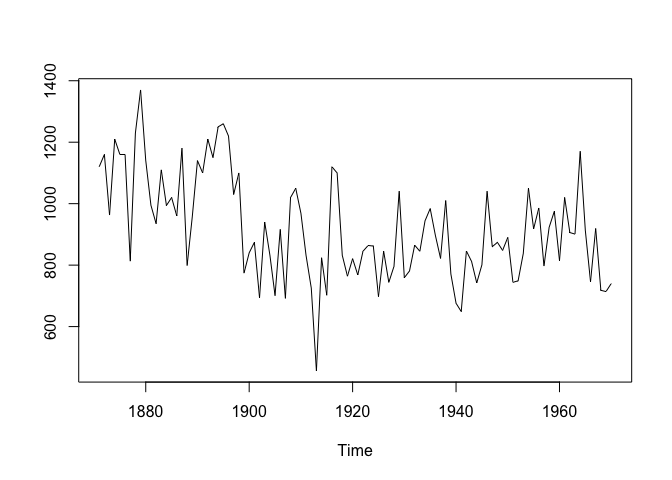

plt(Nile)

n = .Last.value
str(n)
#>  <tinyplot recorded plot>
#>   call: plt(Nile)
#>   display list entries: 7
#>   size: 93.4 Kb

Don't forge to disable automatic recording. The overhead is minimal, but it can start to eat into memory if you start recording+assigning lots of detailed plots with many elements.

tpar(record = FALSE)

Original (outdated) description

By adding grDevices::recordPlot() to the very end of the main tinyplot() function, we gain the ability to record (assign) plots as objects and then replay them later.

pkgload::load_all("~/Documents/Projects/tinyplot/")
#> ℹ Loading tinyplot

a = plt(Sepal.Length ~ Petal.Length | Species, data = iris)

plt(1) # some other random plot

a  # replay the saved plot

Here's a little plt_add gotcha, though...

plt_add(type = "lm") # gotcha: the last plot "call" was plt(1)!

But note that nothing stops us from layering immediately... and we can record and replay from a later layer too. Here, demonstrating with a theme to drive home the point.

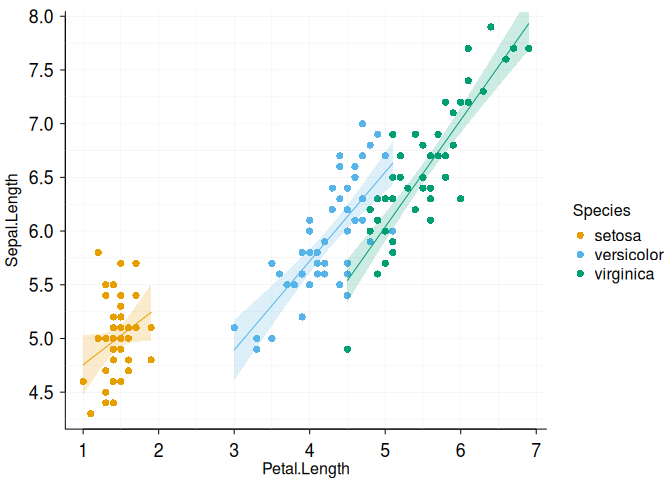

plt(Sepal.Length ~ Petal.Length | Species, data = iris, theme = "socviz")
b = plt_add(type = "lm")

plt(1) # random placeholder again

b # replay the saved, layered plot object

Note: Due to the "canvas" nature of base graphics, we can't suppress the initial display. Unless, that is, we do something tricksy like write to a dummy device / file on disk and then recall later.

png("dummyplot.png")
dev.control("enable") # default for png is "inhibit" -> disallows recording
p = plt(Nile, type = "hist")
dev.off()
#> png
#>   2
p # replay directly on our main, interactie device

^{Created on 2026-08-20 with reprex v2.1.1}

Discussion: To be clear, I'm not convinced that we want to add this functionality. But some quick testing, at least, suggests that it doesn't add any real overhead. Apart from the plt_add() gotcha that I highlight above, I also haven't hit any unintended side effects. Still, I'd like others to kick the tyres too, before we consider whether merging is a good idea.

[b-rodrigues]

Can confirm it works :)

see: https://github.com/b-rodrigues/test-tinyplot/tree/master

[Copilot]

🟡 Changes recommended

Replay state remains incomplete, direct replayPlot() bypasses context restoration, and pairs-style data frames do not return the documented object.

Once you've addressed the issues Copilot identified, you can request another Copilot review.

Pull request overview

Adds opt-in recording and replay of tinyplot graphics while preserving state needed for subsequent layers.

Changes:

• Adds record argument and tpar() setting.
• Introduces recordedtinyplot objects with print/structure methods.
• Adds documentation, website navigation, and tests.

File summaries

File	Description
R/record.R	Implements recorded objects and state restoration.
R/setup_device.R	Enables display lists for managed file devices.
R/tinyplot.R	Adds recording to the main plotting pipeline.
R/tpar.R	Adds global recording configuration.
R/zzz.R	Registers the new internal variable.
R/tinyplot.ts.R	Inherits updated return documentation.
R/tinyplot.matrix.R	Inherits updated return documentation.
R/tinyplot.data.frame.R	Inherits updated return documentation.
R/tinyplot_add.R	Documents recorded layer returns.
inst/tinytest/test-record.R	Tests recording, replay, and layering.
NAMESPACE	Registers methods and grDevices imports.
NEWS.md	Announces experimental recording support.
vignettes/introduction.qmd	Demonstrates saving and replaying plots.
man/recordedtinyplot.Rd	Documents recorded plot objects.
man/tinyplot.Rd	Documents the argument and return value.
man/tpar.Rd	Documents global recording configuration.
man/tinyplot.ts.Rd	Updates generated return documentation.
man/tinyplot.matrix.Rd	Updates generated return documentation.
man/tinyplot.data.frame.Rd	Updates generated return documentation.
man/tinyplot_add.Rd	Updates generated return documentation.
altdoc/quarto_website.yml	Adds the new reference page.
altdoc/pkgdown.yml	Updates the site-build timestamp.

Review details

Files not reviewed (7)

• man/recordedtinyplot.Rd: Generated file
• man/tinyplot.Rd: Generated file
• man/tinyplot.data.frame.Rd: Generated file
• man/tinyplot.matrix.Rd: Generated file
• man/tinyplot.ts.Rd: Generated file
• man/tinyplot_add.Rd: Generated file
• man/tpar.Rd: Generated file

• Files reviewed: 15/22 changed files
• Comments generated: 3
• Review effort level: Balanced

---
