Gozam

An audio recognition webapp built with Go, Gin, PostgreSQL, Redis, and FFmpeg that identifies songs using advanced digital signal processing techniques.

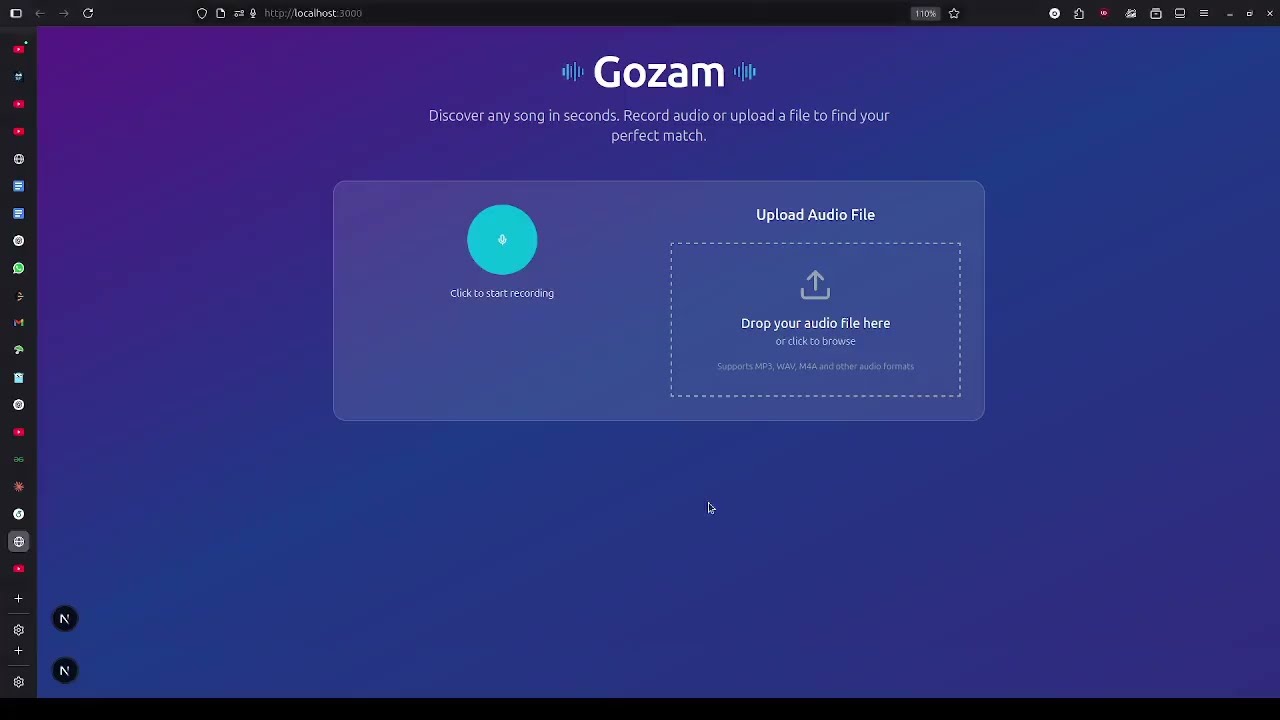

Demo

Features

• Audio Fingerprinting Algorithm: Converts spectral peaks into compact 32-bit hashes using frequency pairs and time deltas
• Song Identification: 100ms timing tolerance for accurate recognition
• Hybrid Storage System: Redis for real-time fingerprint lookups and PostgreSQL for song metadata
• Performance Optimized: Downsampling and frequency range restriction (20Hz–5kHz) for enhanced signal-to-noise ratio (SNR)
• YouTube Integration: Fetch song information and metadata from YouTube API

Tech Stack

• Backend: Go with Gin framework
• Databases: PostgreSQL (metadata), Redis (fingerprint storage)
• Audio Processing: FFmpeg for handling audio files
• APIs: YouTube Data API v3

Installation

Prerequisites

• Go 1.19 or higher
• PostgreSQL
• Redis
• FFmpeg
• ytdlp

Setup

1. Clone the repository

   git clone https://github.com/omcarr/Gozam.git
   cd gozam

2. Install Go dependencies

   cd server
   go mod download

3. Install client dependencies

   cd client
   npm install

4. Set up your environment variables by creating a .env file:

   redisURL=""
   ytApiKey=""
   postgresURL=""
   ytBaseURL=""

Usage

Running the Application

1. Start the server:

   cd server
   go run main.go

2. Start the client (in a separate terminal):

   cd client
   npm run dev

3. Open your browser and navigate to the client URL (http://localhost:3000)

How It Works

1. Audio Processing: Upload or record audio samples
2. Fingerprinting: The system extracts spectral peaks and converts them to 32-bit hashes
3. Matching: Compares fingerprints against the database using frequency pairs and time deltas
4. Identification: Returns matching songs with metadata from PostgreSQL

Algorithm Overview

The audio fingerprinting algorithm is based on research in digital signal processing:

• Spectral Peak Extraction: Identifies prominent frequency peaks in audio spectrograms
• Hash Generation: Creates compact 32-bit fingerprints using frequency pairs and time offsets
• Time Delta Matching: Provides robust identification with 100ms timing tolerance
• Frequency Range Optimization: Focuses on 20Hz–5kHz range for optimal signal-to-noise ratio

Research Papers

For a deeper understanding of the algorithm:

• Prerequisite concepts
• Audio Fingerprinting Research Paper

API Reference

POST /register_song

Description: Register a new song or playlist in the database with its audio fingerprints. (only support for yt links for now. Will extend to spotify in future)

Request:

{
    "url": "https://www.youtube.com/playlist?list=PLWmBFjd0O0lKObLmy6vdUBL5FVKxZCUIP"
}

Response (Success):

{
    "message": "Song successfully registered and downloaded"
}

Response (Error):

{
  "status": "error",
  "message": "Failed to process audio file",
  "error": "detailed_error_message"
}

POST /find_matches

Description: Find matching songs from an audio sample

Request:

{
  "audio_file": "base64_encoded_audio_data"
}

Response (Match Found):

{
  "status": "success",
  "matches": [
    "matches": [
        {
            "SongID": 2274099950,
            "SongTitle": "Teri Ore",
            "SongArtist": "Pritam - Topic",
            "YouTubeID": "fa4l-vJ_5ic",
            "Timestamp": 23,
            "Score": 32004000
        },
]

Response (Error):

{
  "status": "error",
  "message": "Failed to process audio",
  "error": "Audio file format not supported"
}

License

This project is licensed under the MIT License - see the LICENSE file for details.
